• Rear axle, 3.73 ratio
• Pickup box, Wideside
• Air cleaner, high-capacity
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models)
• Four wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 125 amps
• Frame, hydroformed front section
• Recovery hooks, front, frame-mounted
• GVWR, 9200 lbs. (4173 kg)
• Suspension, front independent, torsion bar
• Suspension, rear 2-stage multi-leaf springs semi-elliptic
• Steering, power, recirculating ball
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe

• Wheels, 4-16" x 6.5" (40.6 cm x 16.5 cm) 8-lug chrome-styled steel includes chrome center caps and steel spare (spare wheel will not cosmetically match the other 4 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (Upgradeable to (PY0) 4 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug polished forged aluminum wheels or (N89) 17" x 7.5" (43.2 cm x 19.1 cm) 8-lug polished cast aluminum wheels.)
• Tires, LT245/75R16E all-season, blackwall (Not available with (Z71) Off-Road Suspension Package. Includes 5 tires with (E63) Wideside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
• Tire, spare LT245/75R16 all-season, blackwall includes 16" (40.6 cm) steel spare wheel and spare tire carrier (Requires (ZW9) pickup box delete. Requires (QIZ) LT245/75R16E all-season, blackwall tires or (QIW) LT245/75R16E on-/off-road, blackwall tires.)
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not available with (ZW9) pickup box delete or (VF7) rear bumper delete)
• Bumper, front chrome (Includes body-color bumper top caps.)
• Bumper, rear chrome, step-style with pad (Requires RPO (E63) wideside pickup box)
• Air dam, Black
• Moldings, bodyside, body-colored (Moldings are deleted if any SEO paint is ordered)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, Black, manual-folding (Upgradeable to (DL3) outside heated power-adjustable, power-folding mirrors or (DPN) outside vertical camper mirrors)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window. Included with (PCM) Work Truck Preferred Package.)
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection top of tailgate protection cap

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• XM Radio. XM Radio includes 3 trial months of service. XM turns your world on with commercial-free music channels from Rock to Jazz, Country to Classical, Latin Pop to Hip Hop, and virtually everything in between, all in amazing digital sound. Turn on your favorite Sports with every Major League Baseball game from Opening Day until the World Series, NHL Hockey, the PGA TOUR and college football and basketball. Plus XM brings you the biggest names in news and talk, outrageous comedy, award-winning family programming -- wherever you go from coast to coast. Exclusive live concerts, Oprah and Friends, Radio Disney, and so much more. Find what turns you on (Available only in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. Visit gm.xmradio.com for more details. Not available with (U3U) AM/FM stereo with MP3 compatible CD player and multimedia navigation, (UVB) AM/FM stereo with MP3 compatible CD/DVD player and DVD-based navigation or (UE0) OnStar, delete.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Extended and Crew Cab models
• Air conditioning, single-zone manual front climate control (Upgradeable to (CJ2) dual-zone automatic air conditioning on Extended and Crew Cab models.)
• Seat trim, Premium Cloth
• Seat adjuster, manual lumbar control on the driver-side
• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)
• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats) (May be substituted with (BG9) Black rubberized vinyl floor covering.)
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down
• Door locks, power includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed, located on steering wheel
• Remote vehicle starter prep package, includes Remote Keyless Entry (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. Remote Keyless Entry does not lock/unlock tailgate when (PCM) SLE Preferred Package is ordered.)
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Headliner, Opal Gray-colored cloth with matching retainer moldings
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance (Requires T*20753 or T*20743 Models.)
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Notification, Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, a link to all Emergency Services, Roadside Assistance, Remote Door Unlock (requires power locks), OnStar Vehicle Diagnostics, Hands-Free Calling and Remote Horn and Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details. If the order type is FDR, (UE0) OnStar delete will be forced on. Not available with a ship-to of Puerto Rico or the Virgin Islands. For a list of vehicles with Automatic Crash Notification visit onstar.com. Remote Door Unlock requires (AU3) power door locks.)
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• B5-Diesel compatible (365 hp [271.7 kW] @ 3200 rpm
• 660 lb-ft of torque [894.6 N-m] @ 1600 rpm) Includes (TUV) heavy-duty dual
• 730 cold-cranking-amp battery and (K05) engine block heater)

• SLE Decor
• 3.73 Rear Axle Ratio
• Heavy-Duty Rear Automatic Locking Differential
• 16" x 6.5" Chrome-Styled Steel Wheels
• 16" x 6.5" Polished Forged Aluminum Wheels
• Spare Tire Lock
• Front 40/20/40 Reclining Split-Bench Seat
• Premium Cloth Seat Trim
• 6-Way Power Driver Seat Adjuster
• SLE Preferred Package
• AM/FM Stereo w/MP3 CD Player/XM Satellite
• Bluetooth® For Phone
• Electronic Cruise Control w/Set & Resume Speed
• Electric Rear-Window Defogger
• Color-Keyed Carpeting Floor Covering
• Auto-Dimming Inside Rear-View Mirror
• Solar-Ray Deep-Tinted Glass
• Front License Plate Bracket
• Power-Adjustable Black Heated Outside Mirrors
• Engine Block Heater
• Skid Plate Package
• Heavy-Duty Handling/Trailering Suspension Package
• Off-Road Suspension Package
• Integrated Trailer Brake Controller
• Heavy-Duty Trailering Equipment
• Front Halogen Fog Lamps
• Locking Tailgate
• Power Windows w/Driver Express-Down
• Driver-Side Manual Lumbar Control Seat Adjuster
• Power Door Locks
• Body-Colored Bodyside Moldings
• Dual-Zone Automatic Climate Control
• Driver & Front Passenger Vanity Mirror Visors
• Power-Adjustable Heated Outside Mirrors
• Leather-Wrapped Steering Wheel
• Electronic Shift Transfer Case
• EZ-Lift Tailgate
• 730 CCA Heavy-Duty Dual Battery
• XM Satellite Radio
• Steering Wheel Mounted Audio Controls
• 6 Speaker Audio System Feature
• 4-Wheel Disc Brakes
• Emergency communication system: OnStar Safe & Sound
• AM/FM radio: XM
• Front Center Armrest w/Storage
• Compass
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear step bumper
• Rear seat center armrest
• Rear reading lights
• Radio data system
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Passenger cancellable airbag
• Panic alarm
• Overhead console
• Outside temperature display
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: chrome
• Bodyside moldings
• ABS brakes
• Voltmeter
• Tachometer
• Air Conditioning
• 6 Speakers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): 25.4
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 3461
• Curb Weight - Rear (lbs): 2498
• Gross Vehicle Weight Rating Cap (lbs): 9200
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2450
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.8
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QIZ
• Rear Tire Order Code: QIZ
• Spare Tire Order Code: ZIZ
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2480
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24:1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 235.3
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 77.2
• Overhang, Front (in): 39.4
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 41.5
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.5
• Ground Clearance, Rear (in): 11.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.9
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): 60.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary

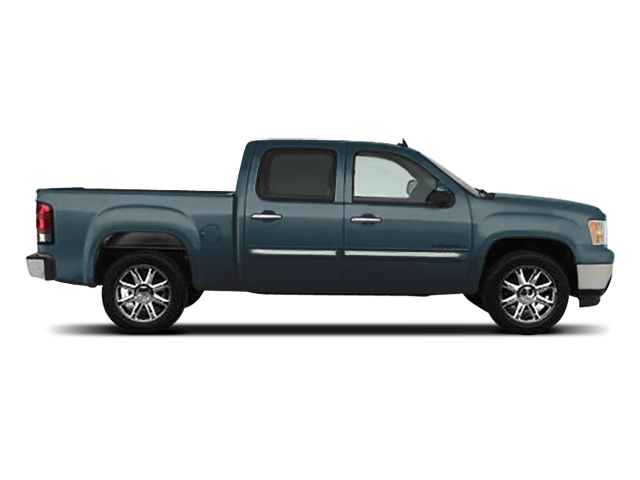

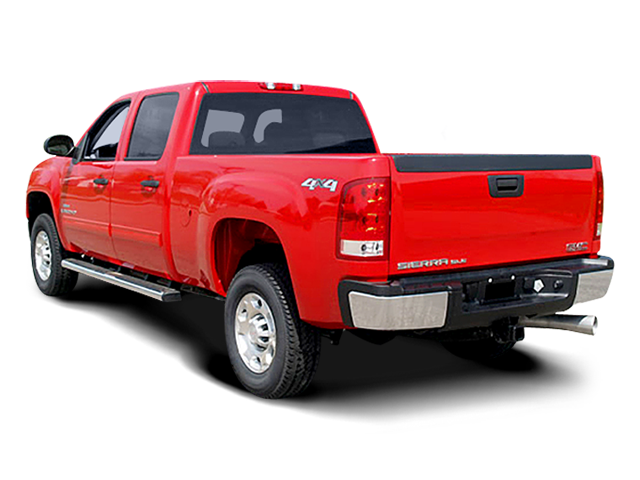

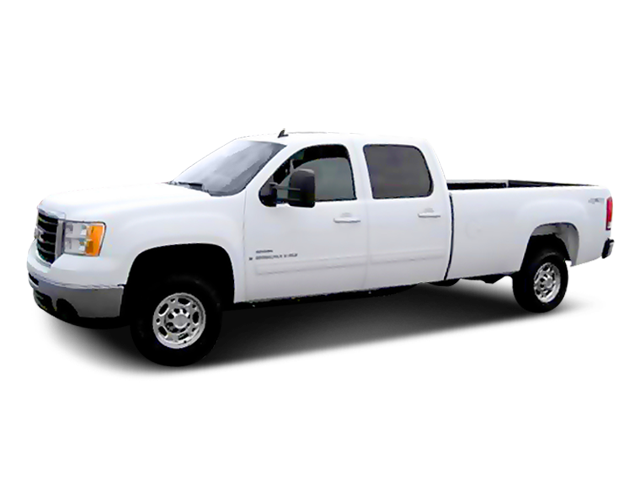

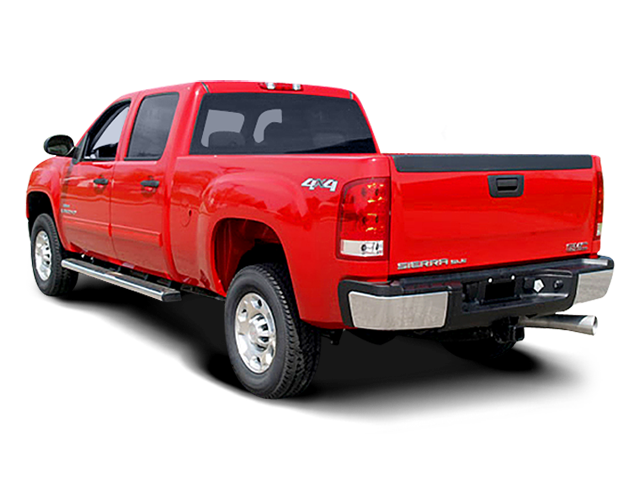

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
