• Differential, heavy-duty locking rear
• Transfer case, electronic Autotrac with rotary controls (Not available on 2WD models.)
• 4-wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 160 amps
• Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• GVWR, 7300 lbs. (3311 kg) (Standard on 4WD models.)
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power

• Wheels, 4 - 20" x 8.5" (50.8 cm x 21.6 cm) polished aluminum
• Tires, P275/55R20 all-season, blackwall
• Fog lamps, front, halogen
• Recovery hooks, front, frame-mounted (Requires 4WD models.)
• Tire, spare P265/70R17 (Upgradeable to (4JP) P265/70R17 on-/off-road, blackwall spare tire.)
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Luggage rack side rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Grille insert, bright chrome
• Moldings, color-keyed bodyside (((B85) color-keyed bodyside moldings will be chrome-accented when (STX) White Diamond Edition is ordered.)
• Assist steps, Black (Upgradeable to (BRS) power-retractable assist steps. Not available with (STX) White Diamond Edition.)
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Daytime Running Lamps, with automatic exterior lamp control
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators, ground illumination and curb-tilt (Mirror caps are bright chrome.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wipers, front intermittent, RainSense
• Windshield washer fluid system, heated
• Wiper, rear intermittent with washer
• Door handles, chrome
• Body, liftgate with liftglass, rear door system with rear-window wiper/washer
• Liftgate, rear power-operated

• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer seek-and-scan, digital clock and auto-tone control and auxiliary audio input jack (Not available with (PCJ) Sun, Entertainment and Destinations Package or (STX) White Diamond Edition.)
• Audio system feature, Bose premium 9-speaker system with subwoofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com.)

• Seats, front bucket with leather-appointed seating, 10-way power driver and front passenger seat adjusters, including power lumbar control, heated seat cushion and seatbacks, 2-position driver memory, adjustable head restraints, storage pockets and floor console
• Seats, third row 50/50 split-bench with 3-passenger, removable, all-belts-to-seat
• Seats, second row bucket with leather-appointed seating, reclining
• Console, floor with storage area, cup holders and integrated second row audio controls (Includes woodgrain covered forward storage.)
• Pedals, power-adjustable for accelerator and brake
• Seats, heated second row
• Seat release, second row, power release only
• Remote vehicle starter system includes Remote Keyless Entry
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row, removable
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right-front passenger
• Universal Home Remote includes garage door opener, programmable
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning
• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls
• Warning tones, headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Tire Pressure Monitoring System (does not apply to spare tire)
• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III
• Heater, rear auxiliary with rear passenger heating ducts
• Air conditioning, rear auxiliary
• Defogger, rear-window electric
• Power outlets, 5 auxiliary, 12-volt, includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console.)
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Headliner, cloth
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions

• StabiliTrak, stability control system with Proactive Roll Avoidance
• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• OnStar, 1-year of Directions and Connections plan. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-by-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details.)
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat or (AW2) 2-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Safety belts, 3-point, driver and front passenger in all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT

• capable of running on unleaded or up to 85% ethanol (320 hp [238.6 kW] @ 5200 rpm
• 340 lb-ft of torque [459.0 N-m] @ 4200 rpm)
• iron block (STD)

• Preferred Equipment Group 1LZ
• 3.73 Rear Axle Ratio
• Heavy-Duty Rear Locking Differential
• 2nd Row Reclining Bucket Seats
• 3rd Row 3-Passenger Vinyl 50/50 Split-Bench Seat
• Heated 2nd Row Seats
• 20" x 8.5" Polished Aluminum Wheels
• 2nd Row Power Seat Release
• Automatic Tri-Zone Air Conditioning
• Front Full-Feature Power Reclining Bucket Seats
• Bose Premium 9-Speaker Audio System Feature
• Universal Home Remote
• AM/FM Stereo w/MP3/CD/DVD & XM Satellite
• Rear Seat Entertainment System
• Autoride Suspension Package
• Rear-View Camera System
• Sun, Entertainment & Destinations Package
• Remote Vehicle Starter System
• Power Tilt-Sliding Sunroof
• Front Halogen Fog Lamps
• Luggage Rack Center Rails
• Chrome-Accented Bodyside Moldings
• Power Adjustable Pedals For Accelerator & Brake
• Auto Air Level Control
• Ultrasonic Rear Parking Assist
• Chrome Door Handles
• Bright Chrome Grille Insert
• Front Intermittent RainSense Wipers
• Floor Console
• Power Folding & Adjustable Heated Outside Mirrors
• Rear Power-Operated Liftgate
• XM Satellite Radio
• OnStar 1-Year Directions & Connections Plan
• Rear Audio System Controls
• Heated Windshield Washer Fluid System
• 4-Wheel Disc Brakes
• Compass
• 8 Speakers
• Auto-dimming Rear-View mirror
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear seat center armrest
• Rear reading lights
• Rear anti-roll bar
• Rear air conditioning
• Radio data system
• Power windows
• Power steering
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Overhead console
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• ABS brakes
• Voltmeter
• Tachometer
• Spoiler
• Electronic Stability Control
• Air Conditioning
• Emergency communication system: OnStar Safe & Sound
• AM/FM radio: XM
• Steering wheel mounted audio controls
• Roof rack: rails only
• Rear audio controls
• Panic alarm
• Overhead airbag
• Front fog lights
• Bodyside moldings
• Alloy wheels
• Front Center Armrest
• Front Bucket Seats

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2874
• Curb Weight - Rear (lbs): 2513
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Coil springs
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4100
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 46.0
• Shock Absorber Diameter - Rear (mm): 46.0
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.1
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: ZVL
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 17.75
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.0
• Length, Overall w/rear bumper (in): 202.0
• Width, Max w/o mirrors (in): 79.0
• Height, Overall (in): 76.9
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 31.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 81.4
• Cargo Area Length @ Floor to Seat 2 (in): 49.4
• Cargo Area Length @ Floor to Seat 3 (in): 15.2
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.10
• Cargo Box (Area) Height (in): 41.7
• Cargo Volume to Seat 1 (ft³): 108.9
• Cargo Volume to Seat 2 (ft³): 60.3
• Cargo Volume to Seat 3 (ft³): 16.9
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 39.2
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 60.6
• Third Head Room (in): 37.9
• Third Leg Room (in): 25.6
• Third Shoulder Room (in): 61.7
• Third Hip Room (in): 49.1
• Summary

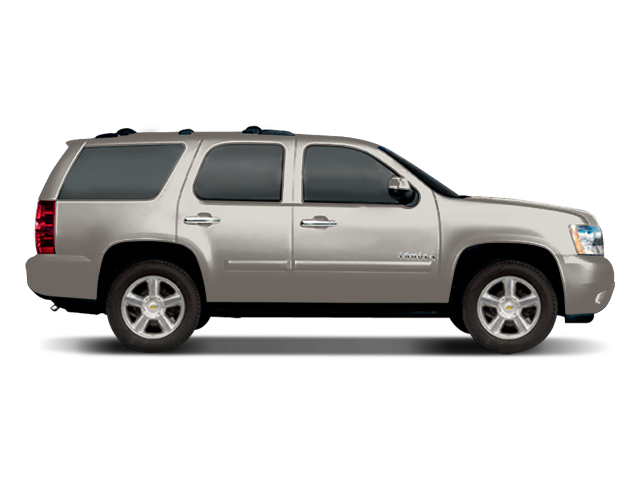

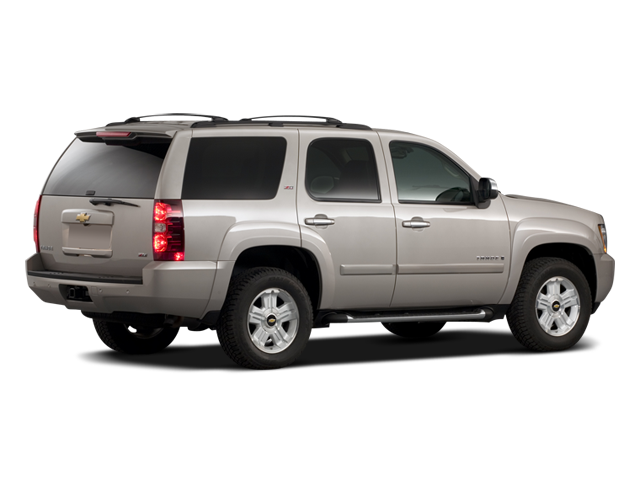

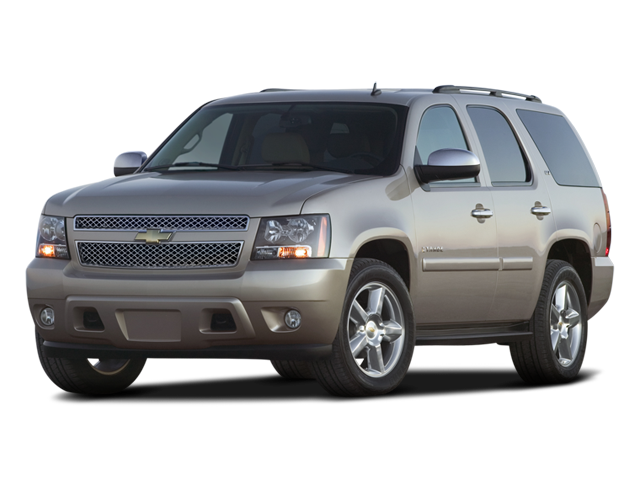

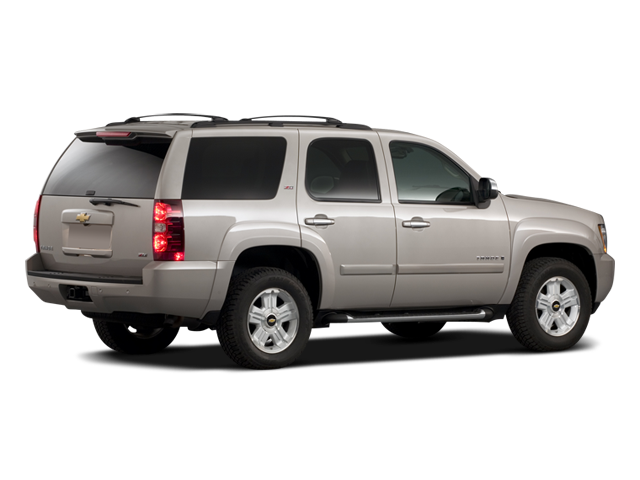

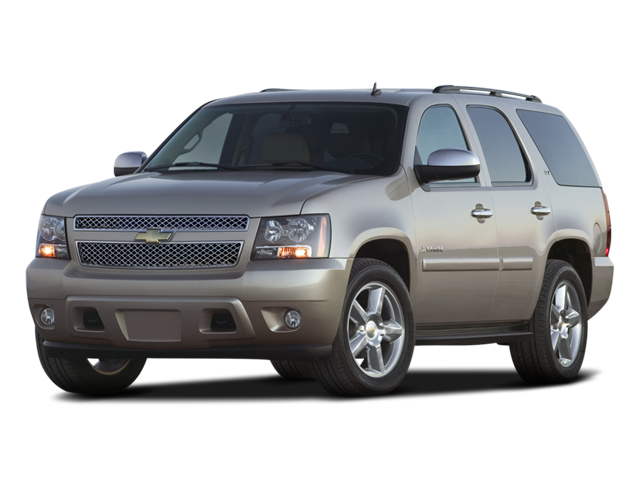

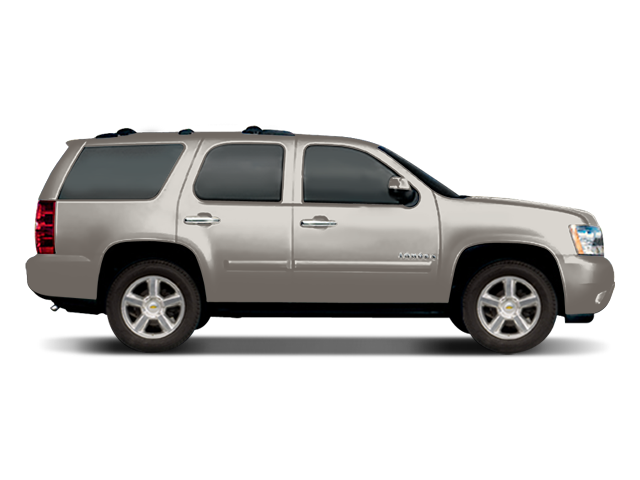

• Vehicle Name: Chevrolet Tahoe
• Body Style: 4 Door
• Body Code: E52
